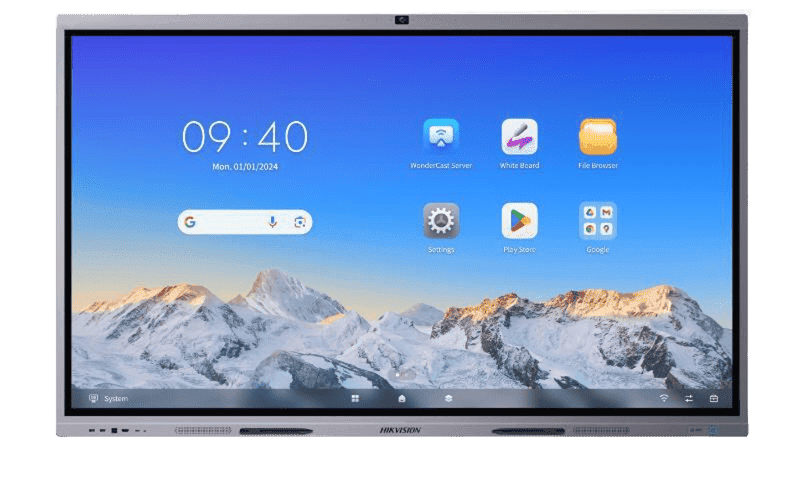

Hikvision DS-D5CRB/B | Interactive Whiteboard Display with tracking camera
Tags:
The Hikvision DS-D5CRB/B is a cutting-edge 4K interactive display designed to elevate collaboration and engagement in various settings. As part of the Hikvision flagship lineup, this unit seamlessly integrates advanced features with intuitive usability.
Key Features:
●UHD 4K Display: With a 3840 × 2160 resolution, the DS-D5CRB/B delivers stunning visual clarity, making it ideal for presentations, educational environments, and creative brainstorming sessions.
●Anti-Glare and Anti-Blocking Design: The display’s surface is meticulously crafted to minimize glare and ensure uninterrupted interaction. Whether you’re annotating content or conducting video conferences, the smooth experience remains unhindered.
●Dual Systems (Android and Windows): Users have the flexibility to choose between Android and Windows operating systems. This dual-system capability not only streamlines costs but also enhances usability. For optimal performance during video conferences, we recommend running conferencing software under the Windows system.
●Responsive Touch Control: The DS-D5CRB/B supports up to 45-point touch control, allowing multiple users to collaborate simultaneously. Whether you’re navigating applications, sketching ideas, or annotating documents, the display responds swiftly and accurately.
●Efficient Network Management: Thanks to the built-in network switch chip, you can simplify your network infrastructure. Connect other devices directly to the display, reducing the need for additional switches and enhancing overall efficiency.
●Thoughtful Design: The all-in-one design features tempered glass for durability and an intelligent temperature control system. This ensures a safe and environmentally friendly operation, even during extended usage. Additionally, the display incorporates blue light protection, safeguarding users’ eyes during prolonged viewing.
Dynamiccom is proud to offer this innovative and advanced display, perfect for a variety of settings including classrooms, conference rooms, and collaboration spaces. Experience the future of interactive displays with the Hikvision DS-D5CRB/B from Dynamiccom.
65inch PDF
75inch PDF
86inch PDF
- Select Size
- Quantity
Product Details
- Panel
- Glass Thickness3.2mm
- Glass Bonding MethodZero Lamination
Product ModelDS-D5C
- Display
- Screen Size 65-86 inch
- BacklightDLED
- Pixel Pitch0.1645（H）× 0.4935（V）mm
- Resolution3840 × 2160 @60 Hz
- Brightness400 cd/m² with Brightness sensor
- Color Depth10bit
- Contrast Ratio5000 : 1
- Response Time6 ms
- Color Gamut72% NTSC
- Refresh Rate60 Hz
- Viewing Angle178°(H)/178°(V)
- Optical
- Aspect Ratio16 : 9
- Built-In System
- Operation SystemAndroid 12.0
- ProcessorQuad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）
- Memory8 GB
- Built-In Storage128 GB
- Panel TypeVA
- HDCP Version2.0
- Touch Resolution32768 x 32768
- Touch
- TypeInfrared Touch Screen
- Touch Point45 point multi-touch
- Touch Response Time＜ 8 ms
- Touch Precision± 1 mm (≥ 90% touching area)
- Processing Performance
- Display Color1.07G
- Internal Function
- LoudspeakerBuilt-in 2 ×15 W+25 W loudspeaker;
- BluetoothBuilt-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
- Image Processing TechnologySupport 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging；support shadow correction and distortion correction for lens.
- Audio Processing TechnologySupport dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.
- Interface
- Video & Audio InputHDMI In （HDMI 2.0）× 3, VGA In × 1, DP In （DP 1.2）× 1, Audio In × 1
- Video & Audio OutputHDMI Out （HDMI 2.0）× 1, Audio Out × 1, SPDIF Out ×1
- Control InterfaceTOUCH-USB 3.0 × 3, RS232 × 1
- Network Interface
LAN (1000 Mbps) × 2
WIFI AP&Station，2.4 G/5 G
IEEE 802.11 a/b/g/n/ac 2×2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
- Data Transmission InterfaceUSB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)
- Power
- Standby Consumption≤ 0.5 W
- Max. Consumption< 375W
- Working Environment
- Working Temperature0 °C to 40 °C (32 °F to 104°F)
- Working Humidity10%~90% RH
- General
- VESA800 mm × 600 mm （4 × M8-25 mm）
- Power Supply100 to 240 VAC, 50/60 Hz
- AccessoryWall mount bracket, hook, user manual, touch writing pen, packing list, 3M touch USB cable, 3M HDMI cable (2.0), 1.5m power cable (European standard), Bluetooth remote control.
- NFCSupport screen mirroring by Android phones.
- Camera
- Pixel8 MP (48MP for photos)
- Camera FunctionSupport intelligent switching between Android system, OPS, and PC.
- Field Angle120°(diagonal), 110°(horizontal), 75°(vertical)
- Distortion≤2.5%
- Camera Resolution RatioUp to 4K
- Microphone
- SpecificationOmni-directional 8-array layout
- Mic FunctionEcho reduction and smart noise-cancellation
- Voice Distance12 m
- Sampling Rate32 K
- Mic Sampling Rate16 bit
